Puma 140 - 210
More from the land. More from yourself. More from your equipment. Which is why we provide more. More powerful engines. More productivity-boosting features. More approachable and knowledgeable dealers. We provide more to better serve you and the needs of your operation. Let’s face it. Goals change. Needs change. The world changes. But the number of hours in the day never does. That’s why we’ve developed an efficient, multi-purpose tractor line with just the right amount of power for both row-crop and livestock applications – the Puma™ Series Tractors. It's reliable. It's durable. It's fuel efficient. It's PUMA. applications in arable, contracting and livestock farming situations.
Overview
Puma 140 - 210
Operate more efficiently
The Puma™ tractor series is all about efficiency. With four models, ranging from 142 to 213 horsepower (CV), Puma tractors provide the right amount of power for primary tillage, cultivation, planting and transport. Whether it’s spring or autumn work or pulling trailers, the Puma tractors’ outstanding power-to-weight ratio will deliver the precise power you need for top efficiency and fuel savings.
Explore the Series

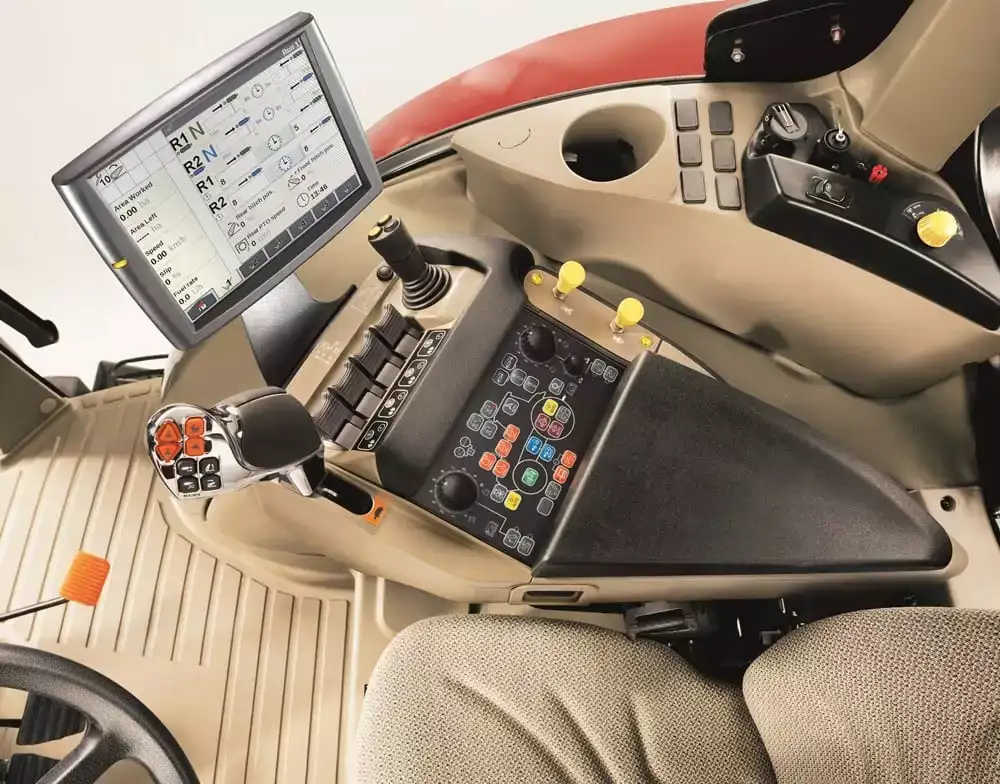

The Multicontroller armrest is ergonomically perfect and includes a fully integrated joystick for control of tractor hydraulics.performance with exceptional low operating costs. If you need a high performance in a simple, economical and reliable compact tractor below 50 HP, the JXT Compact is the answer.
Specifications
+ − Model
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|
+ − Engine
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|---|---|---|---|
| Puma 210 | Puma 180 | Puma 155 | Puma 140 | |
| Number of cylinders | 6 | 6 | 6 | 6 |
| Type | Diesel engine, wastegate turbo and intercooler | Diesel engine, wastegate turbo and intercooler | Diesel engine, wastegate turbo and intercooler | Diesel engine, wastegate turbo and intercooler |
| Emission Level | Tier 3 | Tier 3 | Tier 3 | Tier 3 |
| Capacity (cm³) | 6,700 | 6,700 | 6,700 | 6,700 |
+ − Engine Performance
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|---|---|---|---|
| Puma 210 | Puma 180 | Puma 155 | Puma 140 | |
| Maximum engine power with Power Management (hp (kW)) | 242 (178) | 234 (172) | 193 (142) | 178 (131) |
| Maximum engine power (hp (kW)) | 223 (164) | 200 (147) | 169 (124) | 152 (112) |
| @ engine speed (rpm) | 1900-2000 | 1900-2000 | 1900-2000 | 1900-2000 |
| Rated engine power with Power Management (hp (kW)) | 238 (175) | 218 (160) | 183 (135) | 167 (123) |
| Rated engine power (hp (kW)) | 213 (157) | 182 (134) | 158 (116) | 142 (104) |
| Rated engine speed (rpm) | 2,200 | 2,200 | 2,200 | 2,200 |
| Maximum torque Power Management (Nm @ rpm) | 984 / 1600 | 938 / 1600 | 748 / 1600 | 678 / 1600 |
| Maximum torque (Nm @ rpm) | 866 / 1400 | 844 / 1400 | 690 / 1400 | 643 / 1400 |
| Torque rise Standard and Power Management (%) | 27 / 30 | 45 / 35 | 37 / 28 | 42 / 27 |
| Fuel tank capacity diesel / urea (litres) | 410 | 410 | 300 | 300 |
+ − Standard Transmission
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|---|---|---|---|
| Puma 210 | Puma 180 | Puma 155 | Puma 140 | |
| Transmission Type | 18x6 Full-Powershift | 18x6 Full-Powershift | 18x6 Full-Powershift | 18x6 Full-Powershift |
| Maximum Speed Forward (kp/h) | 40 | 40 | 40 | 40 |
| Powershuttle | Std. | Std. | Std. | Std. |
| Creeper | Option | Option | Option | Option |
+ − Optional Transmission 1
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|---|---|---|---|
| Puma 210 | Puma 180 | Puma 155 | Puma 140 | |
| Transmission Type | 19x6 Full-Powershift | 19x6 Full-Powershift | 18x6 Semi-Powershift | 18x6 Semi-Powershift |
| Maximum Speed Forward (kp/h) | 40 Eco / 50 | 40 Eco / 50 | 40 | 40 |
| Powershuttle | Std. | Std. | Std. | Std. |
| Creeper | Option | Option | Option | Option |
+ − Optional Transmission 2
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|---|---|---|---|
| Puma 210 | Puma 180 | Puma 155 | Puma 140 | |
| Transmission Type | - | - | 19x6 Full-Powershift | 19x6 Full-Powershift |
| Maximum Speed Forward (km/h) | - | - | 40 Eco / 50 | 40 Eco / 50 |
| Powershuttle | - | - | Std. | Std. |
| Creeper | - | - | Option | Option |
+ − Optional Transmission 3
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|---|---|---|---|
| Puma 210 | Puma 180 | Puma 155 | Puma 140 | |
| Transmission Type | - | - | - | - |
| Maximum Speed Forward (km/h) | - | - | - | - |
| Powershuttle | - | - | - | - |
| Creeper | - | - | - | - |
+ − Power Take Off
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|---|---|---|---|
| Puma 210 | Puma 180 | Puma 155 | Puma 140 | |
| PTO Type | Electro-hydraulic with Auto PTO control available | Electro-hydraulic with Auto PTO control available | Electro-hydraulic with Auto PTO control available | Electro-hydraulic with Auto PTO control available |
| Speed Standard @ rpm | 540E/1000 @ 1569/1893 | 540E/1000 @ 1569/1893 | 540/540E/1000 @ 1969/1546/2120 | 540/540E/1000 @ 1969/1546/2120 |
| Speed Optional @ rpm | 540/1000 @ 1893/1950 | 540/1000 @ 1893/1950 | - | - |
| Ground drive | - | - | - | - |
| Shaft type | 1 3/8” 21 splines 1 3/8” 6 splines / 1 3/4” 20 splines | 1 3/8” 21 splines 1 3/8” 6 splines / 1 3/4” 20 splines | 1 3/8” 21 splines / 1 3/8” 6 splines | 1 3/8” 21 splines / 1 3/8” 6 |
+ − Front PTO and hitch
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|---|---|---|---|
| Puma 210 | Puma 180 | Puma 155 | Puma 140 | |
| Speed Standard @ rpm | 1,000 | 1,000 | 1,000 | 1,000 |
| Front hitch lift capacity | 3,900 | 3,900 | 3,568 | 3,568 |
+ − Drive and Steering (Driveline)
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|---|---|---|---|
| Puma 210 | Puma 180 | Puma 155 | Puma 140 | |
| 2WD | - | - | - | - |
| 4WD | Yes | Yes | Yes | Yes |
| Front axle suspension | Std. / Active | Std. / Active | Option | Option |
| Steering angle (°) | 55 | 55 | 55 | 55 |
| Min.turning radius (m) | 6.1 | 6.1 | 5.45 | 5.45 |
| Rear axle diff-lock | Multi disc wet plate with management system | Multi disc wet plate with management system | Multi disc wet plate with management system | Multi disc wet plate with management system |
| Service Brake Type | Hydraulically operated multiple wet disc brake, self adjusting | Hydraulically operated multiple wet disc brake, self adjusting | Hydraulically operated multiple wet disc brake, self adjusting | Hydraulically operated multiple wet disc brake, self adjusting |
| ABS Anti-lock braking system | - | - | - | - |
+ − Hydraulic System
| Model | Puma 210 | Puma 180 | Puma 155 | Puma 140 |
|---|---|---|---|---|
| Puma 210 | Puma 180 | Puma 155 | Puma 140 | |
| System Type | Variable displacement, pressure flow compensated pump | Variable displacement, pressure flow compensated pump | Variable displacement, pressure flow compensated pump | Variable displacement, pressure flow compensated pump |
| Max. pump flow rate Standard / Option | 120 | 120 | 113 | 113 |
| System pressure (bar) | 215 | 215 | 210 | 210 |
| Control type | Electronic Hitch Control (EHC) with cushion ride control | Electronic Hitch Control (EHC) with cushion ride control |
